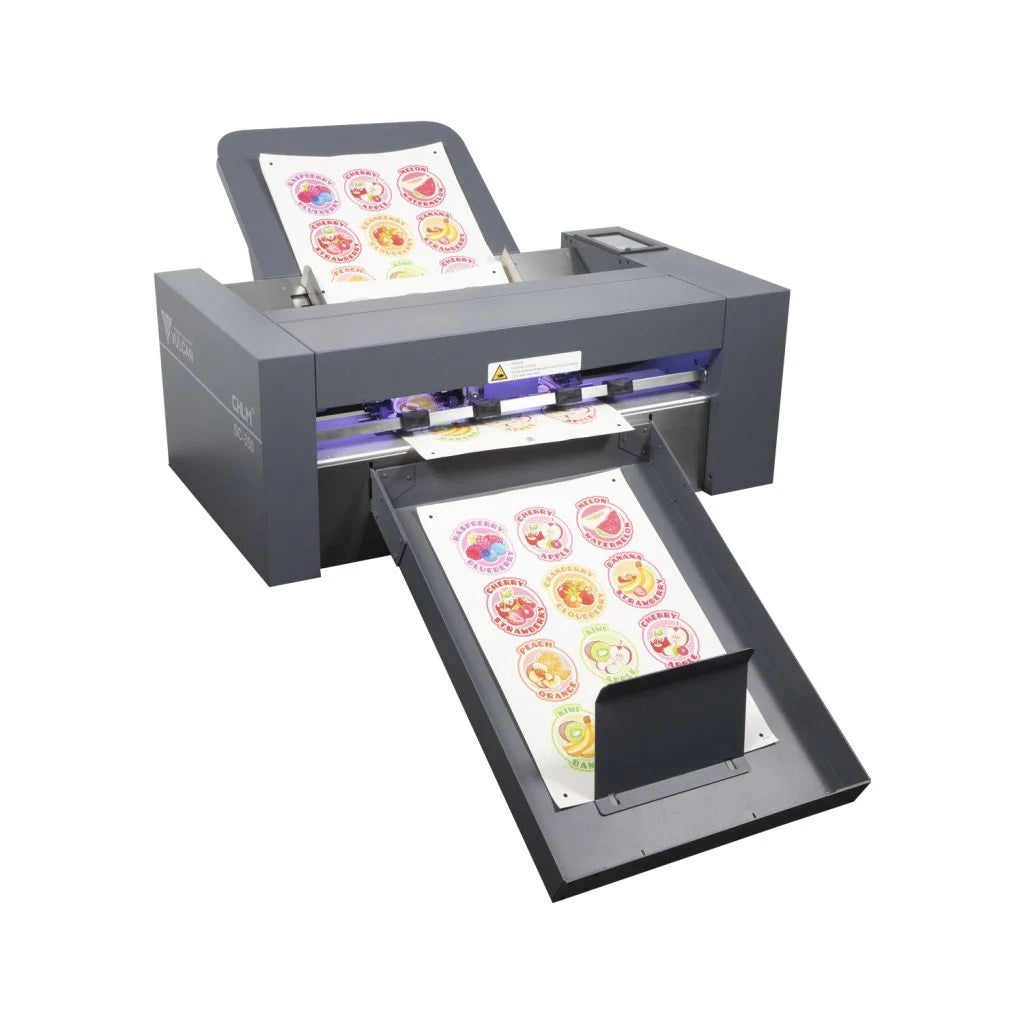

ulcan SC-350 – Key Features & Specifications

Performance & Productivity

Stable and Fast Paper Feeding

Holds up to 300 sheets of A4 at once
Supports multiple sizes: A4, A3, A3+, Letter, Legal, Tabloid
Paper feeding time: as fast as 2 seconds per sheet

High Productivity

Sheet feed: ~2 seconds
CCD camera mark detection: ~4 seconds
Maximum cutting speed: 1200 mm/s

Multiple Data Transfer Options

USB cable
Network connection
U-Disk (USB thumb drive)

Advanced Cutting Technology

High-resolution camera registration system
Automatic QR-code job retrieval

Operating System Compatibility

Supports Windows and Mac

Free Firmware Upgrades

Regular updates provided at no cost

User-Friendly Touchscreen

Bright, intuitive interface with clear icons
Easy navigation and job control
Adjustable carriage speed control:
- Fast (×10)
- Slow (×1)
Dedicated Single Re-Cut button to instantly repeat the last job

Stable, High-Quality Carriage System

The carriage is one of the most critical moving components of any cutter. The SC-350 carriage is built using high-quality materials designed for heavy daily production use.

Vulcan engineers have addressed common heat build-up issues found in other designs, improving durability and long-term reliability.

Camera scans four registration marks in under 3 seconds
Sheet feed in under 3 seconds
Fast QR code recognition

This combination allows you to cut more sheets per hour with consistent accuracy.

High-Resolution Camera System

The SC-350 features a high-resolution camera for precise detection of registration marks as small as 5 mm.

Detects marks on coloured and transparent materials
Scans four marks in under 3 seconds
Allows smaller reg marks, reducing material waste
Improves overall production efficiency

QR-Code Workflow System

The SC-350 reads QR codes printed on media to automatically match print and cut files.

Eliminates file mismatch errors
Speeds up job setup
Ideal for multi-job production environments

Automatic Paper Feeding System

The unique feeding structure:

Holds up to 300 sheets (A4)
Supports A4, A3 and A3+
Prevents sheet shifting during operation
Maintains high cutting precision
Feeds each sheet in approximately 2 seconds

Large Capacity Exit Tray

Movable exit tray with adjustable sheet adapter
Easy to remove
40 mm depth
Holds up to 200 sheets (depending on material thickness)

LED Working Light

Integrated LED lighting ensures consistent illumination for accurate reading of QR codes and registration marks — even in varying external lighting conditions.

This improves reliability during unattended operation.
