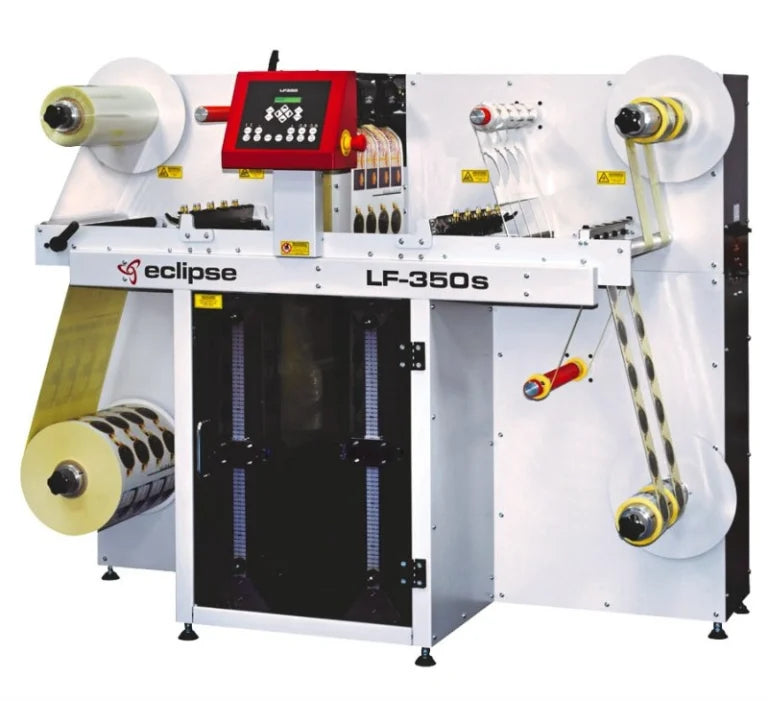

Eclipse LF350-S Digital Label Cutter & Finishing System
High-Speed Digital Label Cutting & Finishing for Large Production Runs
The Eclipse LF350-S is a high-performance digital label cutting and finishing machine engineered for businesses producing large bulk label orders and short-run custom labels with speed, precision and efficiency.
Designed for in-line label printing, cutting and finishing, the LF350-S delivers accurate, economical production using advanced Summa drag knife technology, eliminating the need for expensive cutting dies.
With dual cutting head options, optional barcode-driven job selection, and support for label lengths up to 800mm, the LF350-S provides a flexible solution for modern label manufacturers and print finishing operations.
Built for Fast, Accurate Label Production
The LF350-S combines precision engineering with intelligent automation to streamline digital label finishing for a wide range of applications including:
- Custom product labels
- Food & beverage labels
- Industrial labels
- Chemical labels
- Short-run promotional labels
- Variable data label production
- Large volume label finishing
Its large floor-standing format allows operators to handle wider media webs and larger production volumes while maintaining exceptional cutting accuracy.
Key Benefits of the Eclipse LF350-S
High-Speed Digital Label Finishing
Fast inline label cutting and finishing designed for medium to high-volume production environments.
No Cutting Dies Required
Advanced digital drag knife technology removes the need for traditional dies, reducing setup costs and turnaround times.
Dual Cutting Head Capability
Single or twin-head drag knife cutting with tangential emulation for improved versatility and faster throughput.
Barcode Reading for Automated Job Changes
Optional barcode reading system automatically selects different label shapes and jobs without manual intervention.
Handles Long Labels
Supports label lengths up to 800mm (31.5”), ideal for specialty and industrial label applications.
Large Media Capacity
Designed for large media rolls and bulk production with rewind and waste matrix management systems.
User-Friendly Software & Controls
Includes WinPlot cutting software plus plug-ins for Adobe Illustrator and CorelDRAW for streamlined workflow integration.
Eclipse LF350-S Features & Specifications
| Feature | Specification |
|---|---|
| Media Width | 350mm (13.7”) |
| Cut Speed | Up to 800mm/s |
| Cut Type | Single or twin head drag knife with tangential emulation |
| Cut Registration | Single point registration mark |
| Cut Capability | Printed and unprinted media |
| Maximum Label Length | 800mm (31.5”) repeat |
| Maximum Roll Diameter | 450mm (17.7”) |
| Lamination | Unsupported laminate roll with supported rewind |
| Waste Matrix System | Removal and rewind with twin reversible rewind and selvedge removal |
| Finished Label Rewind | Dual reversible rewind |
| Core Size | 76mm (3”) |
| Software | WinPlot, cutter control software, CorelDRAW & Adobe Illustrator plug-ins |
| Power Supply | Single phase 110/240VAC, 50/60Hz |
| Dimensions | 1740mm W x 910mm D x 1340mm H |
| Weight | 360kg |
Engineered for Professional Label Manufacturers
The Eclipse LF350-S has been developed specifically for professional label producers seeking:
- Faster turnaround times
- Reduced production costs
- Flexible short-run capability
- Accurate digital finishing
- Reliable high-volume performance
The intuitive operator panel allows users to easily store and recall parameters including rotating speed and positioning, while precision position indicators simplify setup and reduce downtime during format changes.
Manufactured in Great Britain
Eclipse machines are proudly designed and manufactured in Great Britain using advanced engineering and strict quality control standards. Every machine is backed by experienced technical support and a professional dealer network dedicated to helping your business succeed.
Talk To Our Team Today
Discover how the Eclipse LF350-S digital label cutter and finishing machine can improve productivity, reduce setup costs and expand your label production capabilities.
Contact our team today to learn more about the Eclipse LF350-S.
